| Place of Origin: | china |
| Brand Name: | zhaotong |
| Certification: | ISO9001-2015 |
| Model Number: | zt-Knitted Wire Mesh |
| Minimum Order Quantity: | 20kg |
|---|---|
| Price: | negotiate |
| Packaging Details: | plastic bag or woodedn case , or as our customers'requirements |
| Delivery Time: | about 7-10days |
| Payment Terms: | T/T, Western Union, L/C,paypal |
| Supply Ability: | 999kg per 5days |
| Product Name: | Stainless Steel 304 Knit Wire Mesh - Knitted Woven Mesh With Ripple-Corrugated Knitted 304 Ss Mesh | Material: | Stainless Steel |
|---|---|---|---|
| Length: | 30m/roll | Width: | 200mm |
| Weight: | 15-20kg | Type: | Knitted |
| Wire Diameter: | 0.25mm | ODM: | Yes |
| Thickness: | 20-500mm | Color: | Silver， Yellow |
| Usage: | Demister，Liquid Filter,automotive,medical,Chemical Industry,Air & Liquid Filtration | Business Type: | Factory |
| Sample: | OK | Product Surface: | Corrugated/Flat |
| High Light: | Stainless Steel 304 Knit Wire Mesh,200mm width Knit Wire Mesh,200mm width Knitted Wire Mesh |
||

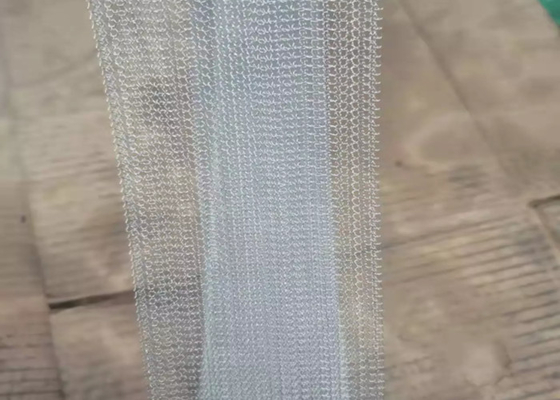

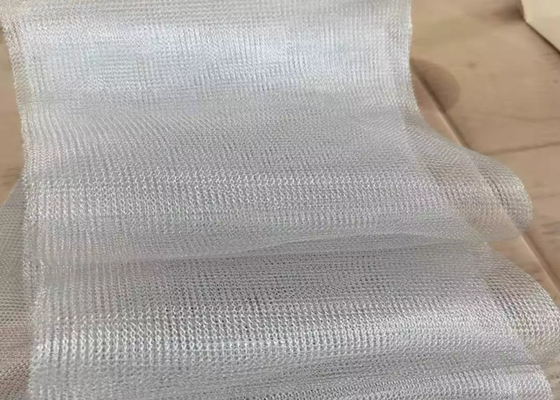

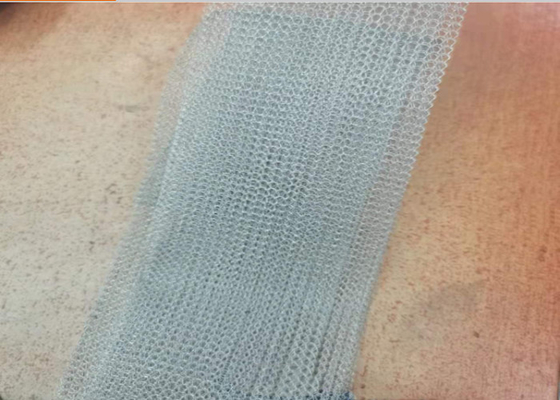

Stainless Steel 304 Knit Wire Mesh - Knitted Woven Mesh With Ripple-Corrugated Knitted 304 Ss Mesh
Stainless Steel 304 Knitted Wire Mesh introduce
Knitted wire mesh/gas liquid filter mesh, known as the "gas mesh network, also known as bubble mesh, woven wire mesh, wire mesh weaving is a special form, it is used to make screen defoaming machine, oil and gas separator, dust removal, environmental protection, numbness of the engine noise, mechanical damping engineering used in the main part, also in automobile industry, widely used in electronic industry.
Stainless Steel 304 Knit Wire Mesh Roll
Roll width: 200mm
Wire DIA: 0.2 mm
Style York / ACS 931/326/431 or Equivalent
Stainless Steel 304 Knit Wire Mesh roll
Width: 200mm
Wire DIA: 0.2 mm
Style York / ACS 931/326/431 or Equivalent
Stainless Steel 304 Knit Wire Mesh roll
Width: 100mm
Wire DIA: 0.3 mm
Style York / ACS 931/326/431 or Equivalent
Stainless Steel 304 Knit Wire Mesh roll
Width: 200mm
Wire DIA: 0.3 mm
Style York / ACS 931/326/431 or Equivalent
Stainless Steel 304 Knitted wire mesh With Ripple
Knit mesh with ripple
Material : AISI 304
Wire diameter 0.25 mm or 0.26 mm
Ripple depth 5 mm
Width 350 mm
Used for demister YORK 431 style
144 kg/m3 - 80 m2/m3
H: 150 mm - 32 layer
Stainless Steel 304 Knitted Wire Mesh Specification
|
Product name |
Stainless Steel 304 Knit Wire Mesh - Knitted Woven Mesh With Ripple-Corrugated Knitted 304 Ss Mesh |
|
Material |
Stainless steel AISI304 304L 316 316L 321,310S,copper,pure silver,tinned copper,monel,pure |
|
Wire diameter |
0.18mm |
|
Wire shape |
Round wire,Flat wire |
|
width |
3.8mm,5mm,10mm ,15MM,25mm,30mm,35mm,40mm,200mm,400mm,500mm,600mm,800mm,1000mm |
|
surface Shape |
corrugation,twill shape,“W shape”,herringbone |
|
Uasge/application |
Generally used in automotive catalytic converters, exhaust systems, noise suppression and shock absorption devices, air conditioning devices, filters, filter components, Marine turbine engine filters, droplet filters, EMI/RFI shielding, industrial filtration, etc |
|
High temperature resistance, corrosion resistance, acid and alkali resistance, durable |
|
|
Hole |
2*3mm,3*3mm,3*4mm,4*5mm,5*6mm |
|
Color |
Silver,yellow,black,etc |
|
Woven,knitted |
|
|
OEM/ODM |
Yes/OK |
|
ISO9001:2015 |
|
|
Help packing |
