| Place of Origin: | china |
| Brand Name: | zhaotong |
| Certification: | ISO9001-2015 |
| Model Number: | zt-Knitted Wire Mesh |
| Minimum Order Quantity: | 66kg |
|---|---|
| Price: | negotiate |
| Packaging Details: | plastic bag or woodedn case , or as our customers'requirements |
| Delivery Time: | about 7-10days |
| Payment Terms: | T/T, Western Union, L/C,paypal |
| Supply Ability: | 999kg per 5days |
| Product Name: | Wire Loop Knitted Wire Mesh In Aluminum For Demister Pads / Mist Eliminators | Material: | Aluminum |
|---|---|---|---|
| Name: | Knitted Wire Mesh | Shape: | In Roll |
| Width: | 100mm | Business Type: | Factory |
| Application: | Demister Pads / Mist Eliminators | Sample: | Free |
| Type: | Knitted Wire Mesh | Color: | Silver |
| Hole Shape: | Round | OEM: | OK |
| High Light: | Round Hole Knitted Wire Mesh,Aluminum Knitted Wire Mesh,100mm width Knitted Wire Mesh |
||

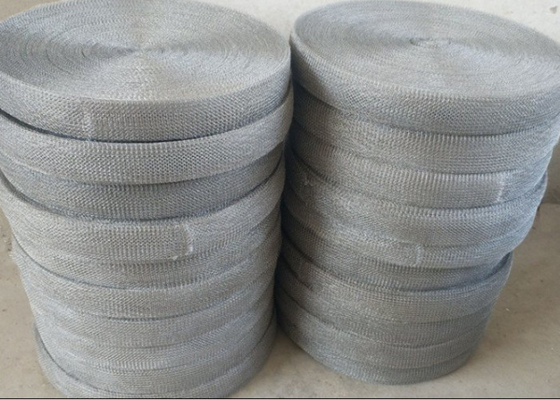

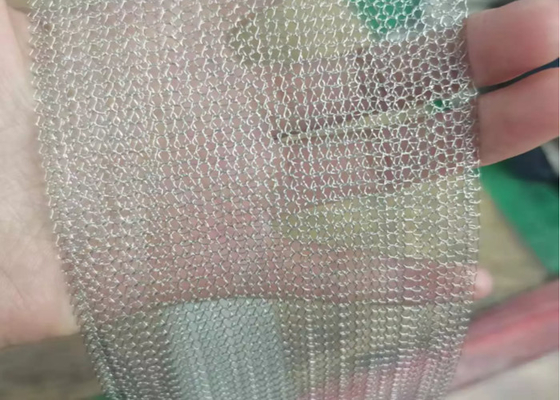

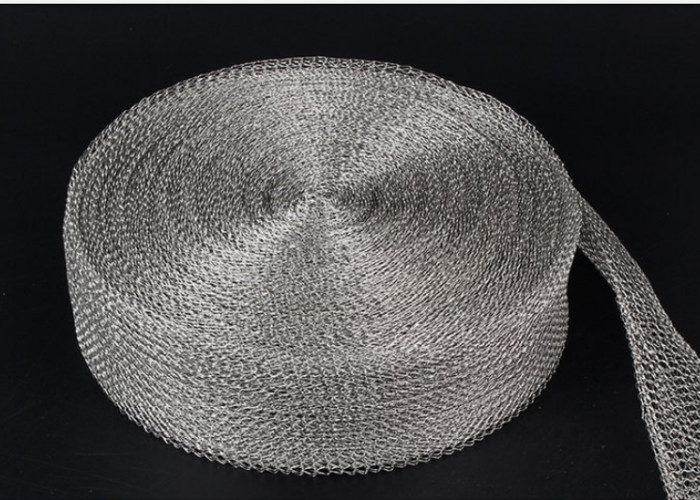

Wire Loop Knitted Wire Mesh In Aluminum For Demister Pads / Mist Eliminators
Stainless Steel Knitted Wire Mesh introduce
knitted wire mesh is a wire or plastic strands woven into a mesh structure in a very similar way to socks or sweaters. Knitting production interlocking ring net. These rings can move relative to each other in the same plane without distorting the mesh, giving the braided mesh a bidirectional stretch. Knitted meshes can be crimped or compressed to change characteristics for specific applications. Stainless steel braided mesh has excellent corrosion resistance, alkali resistance, acid resistance, long service life, rust resistance, heat resistance and other properties. Because of these characteristics, it finds popular use in auto parts and other engineering applications.
Stainless Steel Knitted Wire Mesh different forms
|
Fine Mesh Typical wire diameter(mm) |
Range of natural width(mm) |
|
|
0.08-0.15 |
6-160 |
|
|
Typical number of stitches per cm on length |
Typical number of stitches per cm across lay flat |
|
|
3.5 |
4.5 |
|
Medium-fine mesh Typical wire diameter(mm) |
Range of natural width(mm) |
|
|
0.15 |
40-635 |
|
|
Typical number of stitches per cm on length |
Typical number of stitches per cm across lay flat |
|
|
2.4 |
3.5 |
|
Standard Mesh Typical wire diameter(mm) |
Range of natural width(mm) |
|
|
0.2-0.35 |
30-1000 |
|
|
Typical number of stitches per cm on length |
Typical number of stitches per cm across lay flat |
|
|
1.6 |
1.8 |
|
Coarse mesh Typical wire diameter(mm) |
Range of natural width(mm) |
|
|
0.2-0.35 |
30-550 |
|
|
Typical number of stitches per cm on length |
Typical number of stitches per cm across lay flat |
|
|
1.6 |
0.75 |
|
Super Coarse Mesh Typical wire diameter(mm) |
Range of natural width(mm) |
|
|
0.4-0.5 |
330-350 |
|
|
Typical number of stitches per cm on length |
Typical number of stitches per cm across lay flat |
|
|
0.5 |
0.5 |
Stainless Steel Knitted Wire Mesh application
Embossed knitting wire mesh is a kind of net made by a special technology and a machine with gears. Widely used in automotive, electronics, aviation, military, commercial, industrial consumer goods, telecommunications, medical, testing equipment and accessories and other industries.
Stainless Steel Knitted Wire Mesh Specification
|
Product name |
Wire Loop Knitted Wire Mesh In Aluminum For Demister Pads / Mist Eliminators |
|
Material |
Stainless steel AISI304 304L 316 316L 321,310S,copper,pure silver,tinned copper,monel,pure |
|
Wire diameter |
0.20mm |
|
Wire shape |
Round wire,Flat wire |
|
Width |
250mm,3.8mm,5mm,10mm ,15MM,25mm,30mm,35mm,40mm,300mm,400mm,500mm,600mm,800mm,1000mm |
|
surface Shape |
corrugation,twill shape,“W shape”,herringbone |
|
Uasge/application |
Generally used in automotive catalytic converters, exhaust systems, noise suppression and shock absorption devices, air conditioning devices, filters, filter components, Marine turbine engine filters, droplet filters, EMI/RFI shielding, industrial filtration, etc |
|
High temperature resistance, corrosion resistance, acid and alkali resistance, durable |
|
|
Hole |
2*3mm,3*3mm,3*4mm,4*5mm,5*6mm |
|
Color |
Silver,yellow,black,etc |
|
Woven,knitted |
|
|
OEM/ODM |
Yes/OK |
|
ISO9001:2015 |
|
|
Help packing |
Stainless Steel Knitted Wire Meshes categories
Meshes can be divided into five categories: fine, medium, fine, standard, coarse and ultra coarse, but these categories can cover a wide range of products. With different wire diameters and mesh sizes, as well as different crimping, calendering, folding, layering and rolling processes, the product range is almost unlimited.
Knitted mesh can also be produced in plastic and other fibres- the most commonly used being polypropylene, glass wool and silica yarn.
