| Place of Origin: | china |
| Brand Name: | zhaotong |
| Certification: | ISO9001-2015 |
| Model Number: | zt-Knitted Wire Mesh |
| Minimum Order Quantity: | 20kg |
|---|---|
| Price: | negotiate |
| Packaging Details: | plastic bag or woodedn case , or as our customers'requirements |
| Delivery Time: | about 7-10days |
| Payment Terms: | T/T, Western Union, L/C,paypal |
| Supply Ability: | 999kg per 5days |
| Product Name: | Accord DIN EN 10204 Standard Stainless Steel Knitted Wire Mesh For Demister Pad Gas-Liguid Separator | Material: | Stainless Steel |
|---|---|---|---|
| Width: | 200mm | Length: | 25m/roll |
| Weight: | 15kg | Type: | Knitted |
| Color: | Silver | Wire Diameter: | 0.25mm |
| ODM: | Yes | Thickness: | 20-500mm |
| Usage: | Demister，Liquid Filter,automotive,medical,Chemical Industry,Air & Liquid Filtration | Sample: | Free |
| Business Type: | Factory | Product Surface: | Corrugated/Flat |
| High Light: | din wire mesh knitted,gas liguid separator wire mesh knitted,en 10204 standard knitted wire mesh |
||

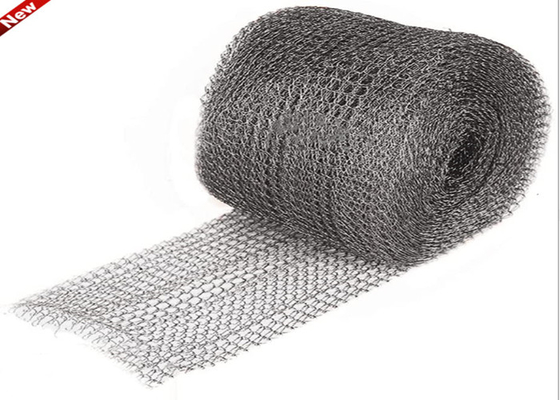

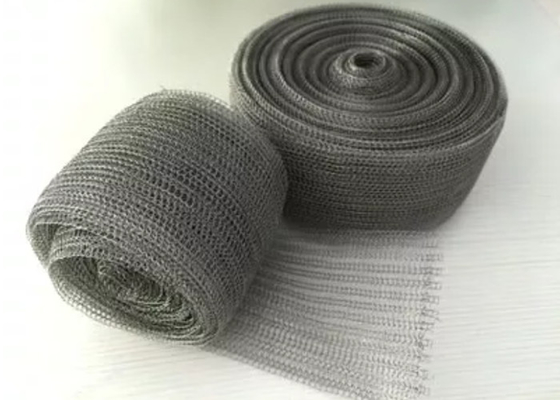

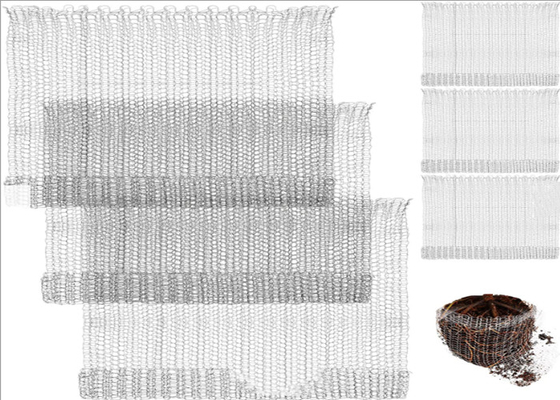

Accord DIN EN 10204 Standard Stainless Steel Knitted Wire Mesh For Demister Pad Gas-Liguid Separator
Knitted Wire Mesh description
Knitted Wire Mesh, also known as mist, is a special form of steel wire woven mesh, it is the main component of the production screen, demist, oil and gas separator, dust, environmental protection, engine muffler, mechanical shock absorption, etc.
Material: stainless steel wire 304, 304L, 321, 316, 316L; Other brass wire, copper wire, titanium wire, alloy wire, nickel wire, Nylon wire, PE wire, glass fiber wire.
Wire diameter :0.10 ~ 0.55mm flat wire or round wire. Most common: 0.20mm-0.25mm.
Hole size :4mm×3mm 5mm×6mm 2mmx4mm, 4mmx5mm, etc
Width :40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500mm, 600mm, etc
Knitted Wire Mesh characteristic
Knitted Wire Mesh possess excellent filtration capability. Our filters are made of stainless steel by using advanced knitting technology at low cost. The filters are of great variety, and of good resistance to corrosion and shock.
Knitted Wire Mesh Specification
|
Product name |
Accord DIN EN 10204 Standard Stainless Steel Knitted Wire Mesh For Demister Pad Gas-Liguid Separator |
|
Material |
Stainless steel AISI304 304L 316 316L 321,310S,copper,pure silver,tinned copper,monel,pure |
|
Wire diameter |
0.20mm |
|
Wire shape |
Round wire,Flat wire |
|
diameter |
3.8mm,5mm,10mm ,15MM,25mm,30mm,35mm,40mm,300mm,400mm,500mm,600mm,800mm,1000mm |
|
surface Shape |
corrugation,twill shape,“W shape”,herringbone |
|
Uasge/application |
Generally used in automotive catalytic converters, exhaust systems, noise suppression and shock absorption devices, air conditioning devices, filters, filter components, Marine turbine engine filters, droplet filters, EMI/RFI shielding, industrial filtration, etc |
|
High temperature resistance, corrosion resistance, acid and alkali resistance, durable |
|
|
Hole |
2*3mm,3*3mm,3*4mm,4*5mm,5*6mm |
|
Color |
Silver,yellow,black,etc |
|
Woven,knitted |
|
|
OEM/ODM |
Yes/OK |
|
ISO9001:2015 |
|
|
Help packing |
Knitted Wire Mesh application
It has the characteristics of simple structure, light weight, small pressure drop, large surface area, high defogging efficiency, convenient installation, operation and maintenance, long service life and so on. It is widely used in chemical industry, petroleum, sulfuric acid, medicine, light industry, metallurgy, machinery, construction, aviation, shipping, environmental protection and other industries.
