Width 50 Cm Knitted Wire Mesh 125m Length Diameter 0.25mm Mat Sus304 80 Roll

Width 50 Cm Knitted Wire Mesh 125m Length Diameter 0.25mm Mat Sus304 80 Roll

Width 50 Cm Knitted Wire Mesh 125m Length Diameter 0.25mm Mat Sus304 80 Roll
Width 50 Cm Knitted Wire Mesh 125m Length Diameter 0.25mm Mat Sus304 80 Roll
Width 50 Cm Knitted Wire Mesh 125m Length Diameter 0.25mm Mat Sus304 80 Roll
Product Details:
Place of Origin: china
Brand Name: zhaotong
Certification: ISO9001-2015
Model Number: zt-Knitted Wire Mesh
Payment & Shipping Terms:
Minimum Order Quantity: 20kg
Price: negotiate
Packaging Details: plastic bag or woodedn case , or as our customers'requirements
Delivery Time: about 7-10days
Payment Terms: T/T, Western Union, L/C,paypal
Supply Ability: 999kg per 5days
Contact Now
Detailed Product Description
Product Name: Width50cm 125m Length Wire Diameter 0.25mm MatSUS304 80 Roll For Filter Material: Stainless Steel 304
Width: 500mm Length: 125m/roll
Weight: 41.6kg Type: Knitted
Wire Diameter: 0.25mm ODM: Yes
Thickness: 20-500mm Usage: Demister,Liquid Filter,automotive,medical,Chemical Industry,Air & Liquid Filtration
Sample: Free Color: Silver, Yellow
Business Type: Factory Product Surface: Corrugated/Flat
High Light:

diameter 0.25mm knitted stainless steel mesh

,

width 50 cm knitted wire mesh

,

sus knitted wire mesh

Width50cm 125m Length Wire Diameter 0.25mm MatSUS304 80 Roll For Filter

Knitted Wire Mesh basic information

Knitted wire mesh/gas liquid filter mesh, known as the "gas mesh network, also known as bubble mesh, woven wire mesh, wire mesh weaving is a special form, it is used to make screen defoaming machine, oil and gas separator, dust removal, environmental protection, numbness of the engine noise, mechanical damping engineering used in the main part, also in automobile industry, widely used in electronic industry.

Knitted Wire Mesh application


It has the characteristics of simple structure, light weight, small pressure drop, large surface area, high defogging efficiency, convenient installation, operation and maintenance, long service life and so on. It is widely used in chemical industry, petroleum, sulfuric acid, medicine, light industry, metallurgy, machinery, construction, aviation, shipping, environmental protection and other industries.



Knitted Wire Mesh Specification


Product name

Width50cm 125m Length Wire Diameter 0.25mm MatSUS304 80 Roll For Filter

Material

Stainless steel AISI304 304L 316 316L 321,310S,copper,pure silver,tinned copper,monel,pure
nickel wire, titanium wire, monel, galvanized wire,copper wire

Wire diameter

0.25mm

Wire shape

Round wire,Flat wire

diameter

3.8mm,5mm,10mm ,15MM,25mm,30mm,35mm,40mm,300mm,400mm,500mm,600mm,800mm,1000mm

surface Shape

corrugation,twill shape,“W shape”,herringbone

Uasge/application

Generally used in automotive catalytic converters, exhaust systems, noise suppression and shock absorption devices, air conditioning devices, filters, filter components, Marine turbine engine filters, droplet filters, EMI/RFI shielding, industrial filtration, etc

characteristic

High temperature resistance, corrosion resistance, acid and alkali resistance, durable

advantage

easy to install ,Long service life,quality guarantee

Hole

2*3mm,3*3mm,3*4mm,4*5mm,5*6mm

Color

Silver,yellow,black,etc

structure/knitting method

sub-thread,double strand or more

surface treatment

cleanout

technology

Woven,knitted

OEM/ODM

Yes/OK

authentication

ISO9001:2015

serve

Help packing


Knitted Wire Mesh benefits

Knitted Wire Mesh possess excellent filtration capability. Our filters are made of stainless steel by using advanced knitting technology at low cost. The filters are of great variety, and of good resistance to corrosion and shock.

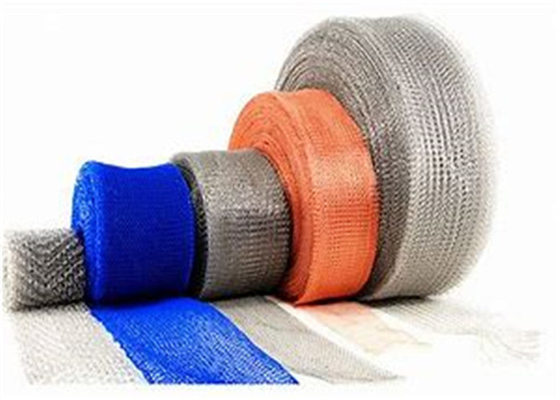

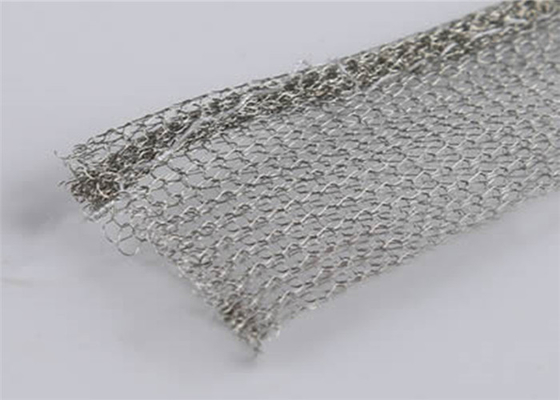

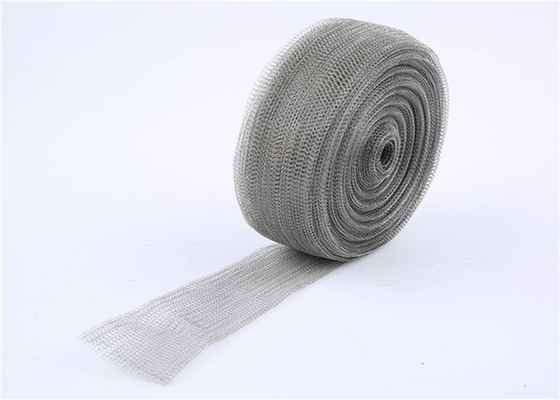

Width 50 Cm Knitted Wire Mesh 125m Length Diameter 0.25mm Mat Sus304 80 Roll 0Width 50 Cm Knitted Wire Mesh 125m Length Diameter 0.25mm Mat Sus304 80 Roll 1
