Place of Origin: | china |
Brand Name: | zhaotong |
Certification: | ISO9001-2015 |
Model Number: | zt-knitted wire mesh |
Minimum Order Quantity: | 66kg |
---|---|
Price: | negotiate |
Packaging Details: | plastic bag or woodedn case , or as our customers'requirements |
Delivery Time: | about 7-10days |
Payment Terms: | T/T, Western Union, L/C,paypal |
Supply Ability: | 999kg per 5days |
Product Name: | Stainless Steel Metal 316 310 30mm Width Knited Wire Mesh For Filter | Material: | Stainless Steel |
---|---|---|---|
Hole: | 2*3mm | Name: | Welded Wire Mesh Fence |
Application: | Liquid Filter,automotive,medical,Chemical Industry,Air & Liquid Filtration | Width: | 30mm |
Color: | Silver | Sample: | Free |
Business Type: | Factory | Type: | Knitted Wire Mesh |
Hole Shape: | Round | Oem: | Ok |
High Light: | 316 ss knitted wire mesh,metal filter ss knitted wire mesh,310 ss knitted filter wire mesh |

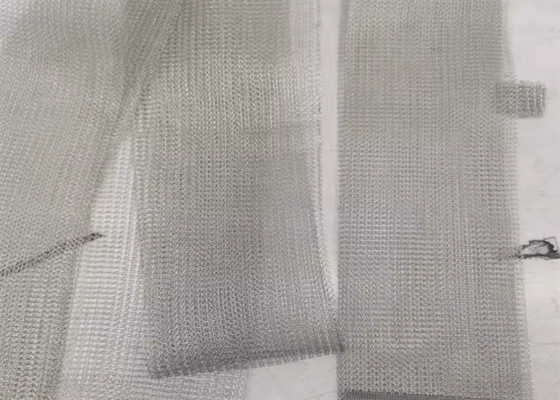

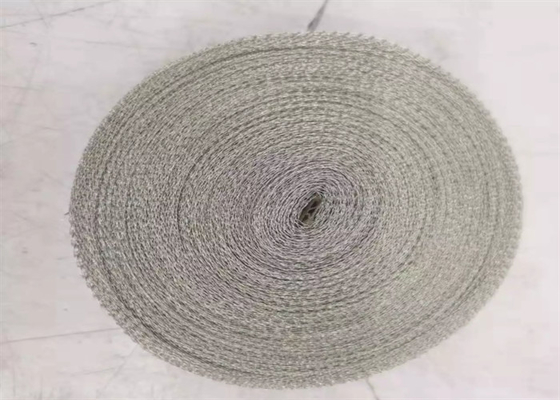

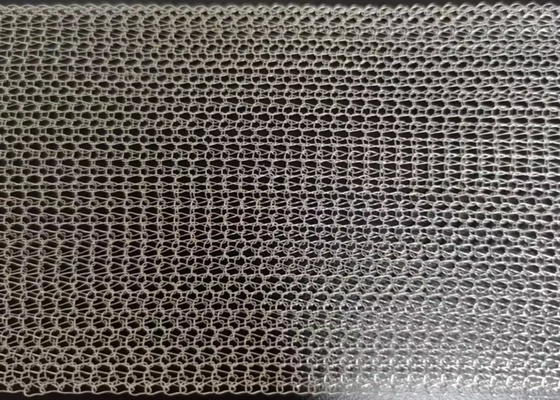

Stainless Steel Metal 316 310 30mm Width Knited Wire Mesh For Filter
Knitted wire mesh basic information
Wire mesh is one of the most important and widely used materials in today's industry. It is almost impossible to find an industry today that does not use wire mesh in one or more applications. knitted wire mesh is basically a web of interconnecting threads made of metal, fiber, or any elastic or malleable material. The main reason is that it is incredibly versatile and with just a little tweaking, its applications are almost unlimited, whether it is processing, manufacturing, food processing, wire mesh has become an important component regardless of industry type.
Knitted wire mesh classify
Knitted wire mesh is a small adjustment that occurs during the manufacture of the mesh, especially the way it is handled, the strands are interlinked, which gives it many unique properties. The mesh is made in a way similar to the weaving of clothes, and the technique is similar to sewing, only more complex, but the basic principles remain the same. Various materials are used to give it different properties, such as stainless steel when resistance to high acid and alkali and high temperature is needed, copper when shielding and corrosion and dust resistance are needed, galvanized wire for high load applications, and polymers for light weight applications. There are roughly three categories according to the materials used:
All Metal - As the name implies, the material used is metal. This is further classified by the number of stitches per centimeter. They are fine, medium fine, standard, thick and ultra thick, and offer great flexibility in use. You can even use meshes of various sizes, using various techniques such as blanching, calendering, and folding to make their applications unlimited.
Plastics and Fibres - Plastic and fibre woven nets are mainly made of materials such as polytetrafluoroethylene, which are very durable, resistant to chemical reactions and can withstand the harshest environments.
Multifilament - In the case of multifilament, the wire may be monofilament or multifilament. Monofilaments are highly cost effective and are mainly used in general applications, while multi-filaments have higher strength and are used in heavy applications such as the coal industry.
Knitted wire mesh usage
The application has recently been expanded to include liquid-gas filters, electronic shielding, defoggers, knitting balls for cleaning and more. It is also used as a safety net, as a cost effective but reliable fence in restricted areas, and as a reinforced concrete structure that relies heavily on micromesh.
Knitted wire mesh Specification
Product name |
Stainless Steel Metal 316 310 30mm Width Knited Wire Mesh For Filter |
Material |
Stainless steel AISI304 304L 316 316L 321,310S,copper,pure silver,tinned copper,monel,pure |
Wire diameter |
0.08-0.55mm |
Wire shape |
Round wire,Flat wire |
Width/diameter |
3.8mm,5mm,10mm ,15MM,25mm,30mm,35mm,40mm,300mm,400mm,500mm,600mm,800mm,1000mm |
surface Shape |
corrugation,twill shape,“W shape”,herringbone |
Uasge/application |
Generally used in automotive catalytic converters, exhaust systems, noise suppression and shock absorption devices, air conditioning devices, filters, filter components, Marine turbine engine filters, droplet filters, EMI/RFI shielding, industrial filtration, etc |
High temperature resistance, corrosion resistance, acid and alkali resistance, durable |
|
Hole |
2*3mm,3*3mm,3*4mm,4*5mm,5*6mm |
Color |
Silver,yellow,black,etc |
Woven,knitted |
|
OEM/ODM |
Yes/OK |
ISO9001:2015 |
|
Help packing |
knitted wire mesh advantages
High Dexterity,
Corrosion-resistant,
highly durable
