0.2mm Ss Knitted Wire Mesh Making Demister Pads And Compressed Gaskets

0.2mm Ss Knitted Wire Mesh Making Demister Pads And Compressed Gaskets

  • 0.2mm Ss Knitted Wire Mesh Making Demister Pads And Compressed Gaskets
  • 0.2mm Ss Knitted Wire Mesh Making Demister Pads And Compressed Gaskets
  • 0.2mm Ss Knitted Wire Mesh Making Demister Pads And Compressed Gaskets
0.2mm Ss Knitted Wire Mesh Making Demister Pads And Compressed Gaskets
Product Details:
Place of Origin: china
Brand Name: zhaotong
Certification: ISO9001-2015
Model Number: zt-Copper Knitted Mesh
Payment & Shipping Terms:
Minimum Order Quantity: 99kg
Price: negotiate
Packaging Details: Waterproof paper inside,plastic cloth outside and then in wooden case.Customized package is also available.
Delivery Time: about 7-10days
Payment Terms: T/T, L/C, Western Union,PayPal
Supply Ability: 999kg per 5days
Contact Now
Detailed Product Description
Product Name: Stainless Steel 0.2mm Pressed Flat Copper Knit Wire Mesh Tubes For Making Demister Pads And Compressed Gaskets Wire Diameter: 0.2mm
Material: Copper、stainless Steel Usage: Making Demister Pads And Compressed Gaskets
OEM: Yes
High Light:

0.2mm ss knitted wire mesh

,

demister pads ss knitted wire mesh

,

compressed gaskets knitted stainless steel mesh

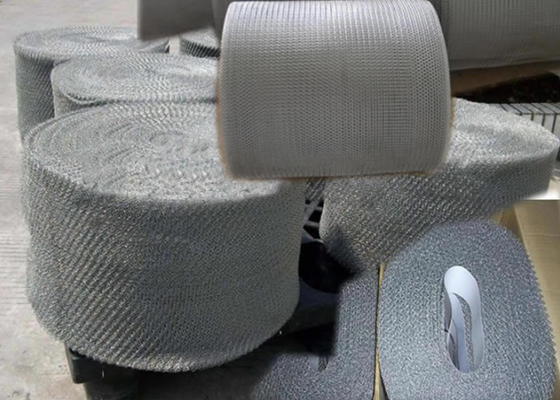

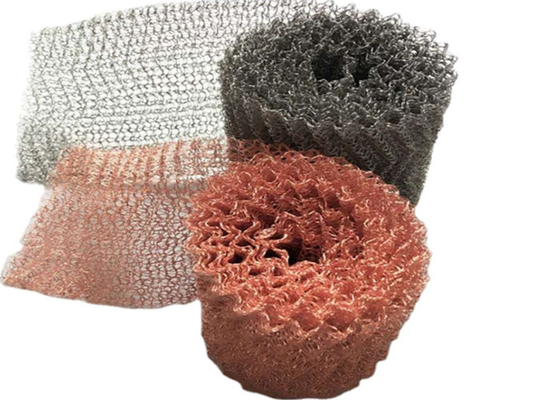

Stainless Steel 0.2mm Pressed Flat Copper Knit Wire Mesh Tubes For Making Demister Pads And Compressed Gaskets





Copper knitted mesh introduce



Copper knitted mesh is one of the main parts of screen demist and other gas-liquid filtration and separation engineering. Flat copper mesh defogger, by distillation, absorption, evaporation and filtration, can be excellent for removing foam, liquid and air particle mixtures. Processing forms include filter, filter tube, filter belt, gasket and gasket. Suitable for petroleum, chemical, metallurgy, machinery, pharmaceutical, automobile, environmental protection and other industries.

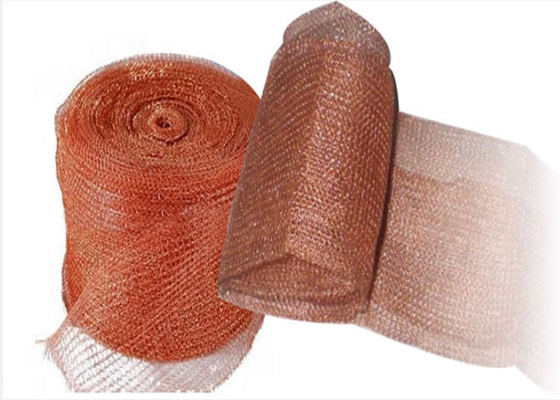

Copper knitted mesh Tape


Wire Material: Tin copper wire 0.12 mm.

width: 85 mm, 110 mm, 115 mm, 150 mm

Bare copper or tinned plated

Color: Red or white

Purity: Pure copper wire99.9%



Copper knitted mesh parameter



product name Stainless Steel 0.2mm Pressed Flat Copper Knit Wire Mesh Tubes For Making Demister Pads And Compressed Gaskets

Wire diameter

0.08mm-0.50mm ( regular wire diameter from 0.18mm - 0.28mm)

Aperture

From (2*3mm) to (4 *5mm) and then to (12* 6mm). Custom hole size available upon requirements. Openings form a large hole and hole cross arrangement (hole dimensions in the longitudinal direction is the same, not the same width)

Surface Conditions of knitted wire mesh

Flat-type mesh and pressed into corrugated mesh (width and depth of the corrugations have different specifications).

The width of the knitted wire mesh

40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400, 500mm, 600mm and so on

Materials

Stainless steel wire, copper wire, brass wire, phosphor bronze wire, galvanized wire, nickel wire, monel 400 wire, titanium wire, etc



Copper knitted mesh Applications



Copper mesh is mainly used for screen demist filter pad

Gas-liquid separation filter, gas-water separation, oil-water separation equipment;

Various filters on automobile and tractor engines;

Automotive parts seal, shock absorption (shock), muffler, exhaust purification components;

Electromagnetic interference shielding of electronic and electrical products;

Architecture and architectural decoration.



0.2mm Ss Knitted Wire Mesh Making Demister Pads And Compressed Gaskets 00.2mm Ss Knitted Wire Mesh Making Demister Pads And Compressed Gaskets 1
