Aperture Stainless Steel Woven Wire Mesh Roll 500 Mesh 0.026mm Plain Weave For Filter

Aperture Stainless Steel Woven Wire Mesh Roll 500 Mesh 0.026mm Plain Weave For Filter

  • Aperture Stainless Steel Woven Wire Mesh Roll 500 Mesh 0.026mm Plain Weave For Filter
  • Aperture Stainless Steel Woven Wire Mesh Roll 500 Mesh 0.026mm Plain Weave For Filter
  • Aperture Stainless Steel Woven Wire Mesh Roll 500 Mesh 0.026mm Plain Weave For Filter
Aperture Stainless Steel Woven Wire Mesh Roll 500 Mesh 0.026mm Plain Weave For Filter
Product Details:
Place of Origin: China
Brand Name: zhaotong
Certification: ISO9001:2015
Model Number: 80 100 120 Mesh
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiate
Packaging Details: as customized
Delivery Time: 10-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per day
Contact Now
Detailed Product Description
Product Name: Woven Wire Mesh Width: Usually1M
Weave Style: Plain Weave Mesh: 500mesh
Certification: ISO9001 Expence: 20 Years
Aperture: 0.026mm Application: Filter
Technique: Woven Feature: Corrosion Resistance,Anti-corrosion
High Light:

Aperture Woven Wire Mesh

,

0.026mm Stainless Steel Woven Wire Mesh Roll

,

500mesh SS Filter Mesh

500 Mesh 0.026 Mm Aperture Stainless Steel Woven Wire Mesh For Filter





Woven Wire Mesh description



Stainless steel wire mesh is widely used, including filtration, ventilation, machine protection, insect control, etc. The woven 500 mesh is a very fine, cloth-like mesh with very small hole sizes. Considering that this material is very flexible, it may require a frame support to increase stiffness.

This mesh is only available in our high quality grade 316L stainless steel. Class 316L stainless steels contain molybdenum. The addition of molybdenum improves corrosion resistance and should be selected if the material is to be used in brine or coastal environments.



Woven Wire Mesh Specification



product name

500 Mesh 0.026 Mm Aperture Stainless Steel Woven Wire Mesh For Filter

Specification



Woven 500 Mesh

Wire thickness 0.025 mm

Aperture (hole size) 0.026 mm

Open area 26.2%

26 microns

Weight per square metre 0.15kg

Woven Stainless Steel, Grade 316L



Woven Wire Mesh trait



1. Solid construction

2. East to install

3. Easily cut to fit



Woven Wire Mesh application



Filtration and separation

Pest control and livestock cages

Process screens and centrifuge screens

Air and water filters

Filters and strainers for air, oil, fuel and hydraulic systems

Fuel cells and mud screens

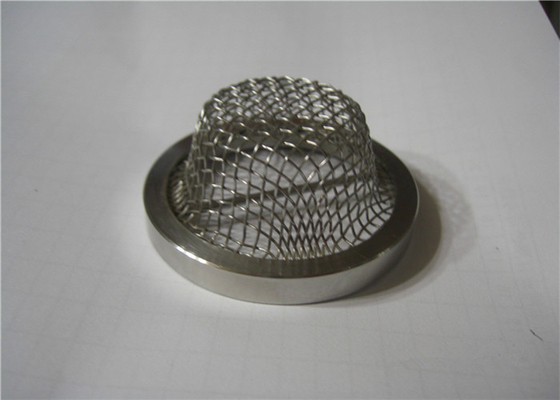

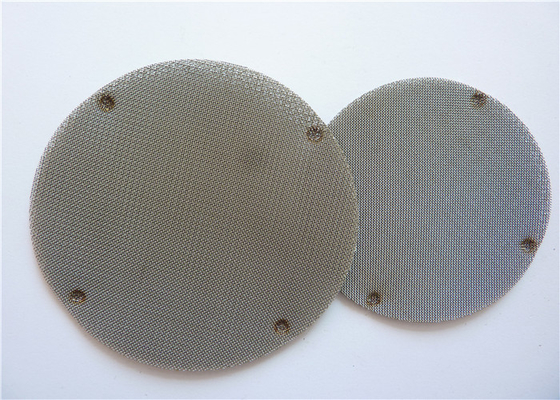

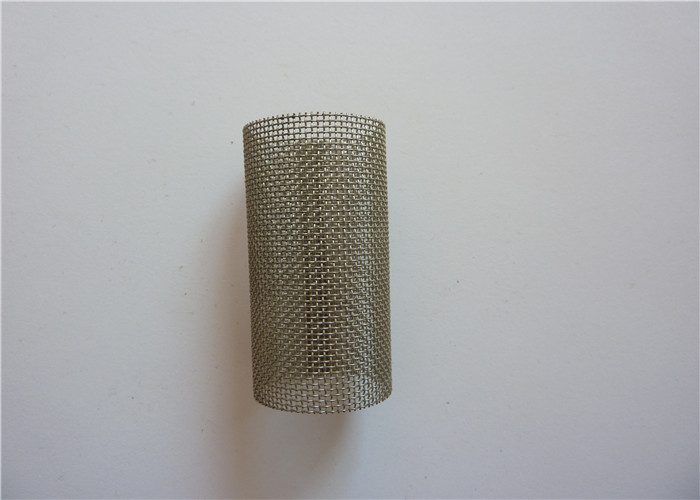

Product Show of Woven Wire Mesh



Aperture Stainless Steel Woven Wire Mesh Roll 500 Mesh 0.026mm Plain Weave For Filter 0

Aperture Stainless Steel Woven Wire Mesh Roll 500 Mesh 0.026mm Plain Weave For Filter 1Aperture Stainless Steel Woven Wire Mesh Roll 500 Mesh 0.026mm Plain Weave For Filter 2
