Multifunctional Sintered Wire Mesh Metal Material 2-100Micron Thickness 0.5mm

Multifunctional Sintered Wire Mesh Metal Material 2-100Micron Thickness 0.5mm

  • Multifunctional Sintered Wire Mesh Metal Material 2-100Micron Thickness 0.5mm
  • Multifunctional Sintered Wire Mesh Metal Material 2-100Micron Thickness 0.5mm
  • Multifunctional Sintered Wire Mesh Metal Material 2-100Micron Thickness 0.5mm
Multifunctional Sintered Wire Mesh Metal Material 2-100Micron Thickness 0.5mm
Product Details:
Place of Origin: China
Brand Name: zhaotong
Certification: ISO9001:2015
Model Number: 2-100 Filtration Accuracy
Payment & Shipping Terms:
Minimum Order Quantity: 99pcs
Price: Negotiate
Packaging Details: as customized
Delivery Time: 10-15days
Payment Terms: L/C, T/T ,PayPal
Supply Ability: 5000pcs per 2days
Contact Now
Detailed Product Description
Product Name: Sintering Mesh Type: Customize
Application: Gas Filter Thickness: 0.5mm
Other Name1: Stainless Steel Sintered Mesh Filter Fineness: 2-100Micron
Size: 5 Lays Technique: Sintered
Sample: Ok Material: Metal
Color: Silver Our Advantages: 20years
High Light:

Multifunctional Sintered Wire Mesh

,

100Micron Sintered Wire Mesh

,

0.5mm Sintered Metal Mesh

2-100 Filtration Accuracy Thickness 0.5mm Multifunctional Sintering Mesh For Filter





Sintered Mesh Description

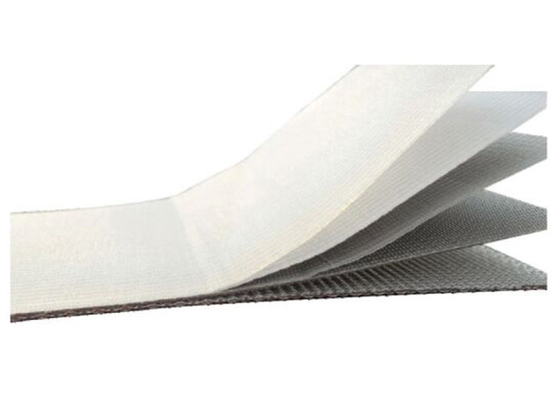

This is a kind of sintered mesh made of multilayer plain woven square hole mesh. Because of the high opening rate of the square hole mesh, the sintered mesh made of high air permeability, small resistance, large flux and other characteristics. It is mainly used for filtration of various gases and liquids. Because each layer of screen has greater selectivity, its structure can be customized according to user requirements.

The material

Standard material SS304, SS304L, SS316, SS316L. Also can be customized for customers such as Monel alloy 400 special alloy.

size

The standard size is 500x1000mm, 600x1200mm, 1000x1000mm. Dimensions in the above range can be customized according to user requirements



Sintered mesh application



Used in air, water and oil filtration, filtration precision and size can be customized.



Sintered Mesh parameters



Product name

2-100 Filtration Accuracy Thickness 0.5mm Multifunctional Sintering Mesh For Filter

Application

Used in air, water and oil filtration, filtration precision and size can be customized.

model

ZT-0.5T

Filtration Accuracy

2-100

structure

Filter layer+60

Thickness

0.5mm

poriness

60



Sintered Mesh Character



1.Resistance to Temperature: less than 1200 centigrade degree

2.Strong thermal shock

3.Extremly weak thermal inertia

4.Long service life

5.Heat resistance

6.High dirt holding capacity

Multifunctional Sintered Wire Mesh Metal Material 2-100Micron Thickness 0.5mm 0Multifunctional Sintered Wire Mesh Metal Material 2-100Micron Thickness 0.5mm 1Multifunctional Sintered Wire Mesh Metal Material 2-100Micron Thickness 0.5mm 2
