316L Knitted Wire Mesh Twin Wire / Dogan Wire 0.18mm Dia 38mm Width For Thermal Insulation

316L Knitted Wire Mesh Twin Wire / Dogan Wire 0.18mm Dia 38mm Width For Thermal Insulation

  • 316L Knitted Wire Mesh Twin Wire / Dogan Wire 0.18mm Dia 38mm Width For Thermal Insulation
  • 316L Knitted Wire Mesh Twin Wire / Dogan Wire 0.18mm Dia 38mm Width For Thermal Insulation
  • 316L Knitted Wire Mesh Twin Wire / Dogan Wire 0.18mm Dia 38mm Width For Thermal Insulation
316L Knitted Wire Mesh Twin Wire / Dogan Wire 0.18mm Dia 38mm Width For Thermal Insulation
Product Details:
Place of Origin: China
Brand Name: zhaotong
Certification: ISO9001:2015
Model Number: Twin-Wire Or Dogan Wire 0.18mm Diameter 38mm Width
Payment & Shipping Terms:
Minimum Order Quantity: 10kg
Price: Negotiate
Packaging Details: as customized
Delivery Time: 10-15days or to quantity
Payment Terms: T/T, L/C, Western Union , PayPal
Supply Ability: 60KG per 1 day
Contact Now
Detailed Product Description
Product Name: Knitted Wire Mesh Application: Thermal Insulation
Filter Rating: 95% Material: Stainless Steel Wire
Technique: Knitted Feature: Corrosion Resistance,high Temperature Resistance
Business Type: Factory,manufacture Width: 38mm
Weave Style: Plain Weave,Knitting Mesh Specification: ISO9001
High Light:

316L Knitted Wire Mesh

,

38mm Knitted Wire Mesh

,

0.18mm Knit Wire Mesh

Twin-Wire Or Dogan Wire 0.18mm Diameter 38mm Width Knitted Wire Mesh For Thermal Insulation





Knitted Wire Mesh Description



knitted wire mesh is a variety of materials and has almost a wide range of applications in most industries. The main woven mesh materials are all metal type and plastic and others, we have rich experience in woven mesh.



Knitted Wire Mesh specifications



Twin-Wire Or Dogan Wire 0.18mm Diameter 38mm Width Knitted Wire Mesh For Thermal Insulation
Material 304, 316, 316L
Diameter 0.08 - 0.55mm,Twin-Wire Or Dogan Wire
Width 100mm, 150mm, 300mm, 400mm, 500mm,
Mesh opening 2*4mm, 4*5mm
Features Service Temperature up to 2000°F
Corrosive Resistant
Extremely Durable
Available and Economical
Application Filtering, Screening



Knitted Wire Mesh size



Our standard knitted insulating mesh is 8 stitches per inch width and 6-8 layers per inch length. In addition, we also provide knitted wire mesh in the following sizes.



Diameter



0.006"

0.008"

0.0095"

0.011"



Width



6"

8"

12"

18"

30"

We provide flat or curled (corrugated) mesh.



Knitted Wire Mesh Advice



For maximum strength and temperature, we recommend using a wire diameter of 0.0095" and 0.011".

For applications that do not require frequent replacement, we recommend 0.008 "wire-diameter.

For maximum flexibility, we recommend a wire diameter of 0.006 ".

For exhaust applications, we recommend the stainless steel 310 version.

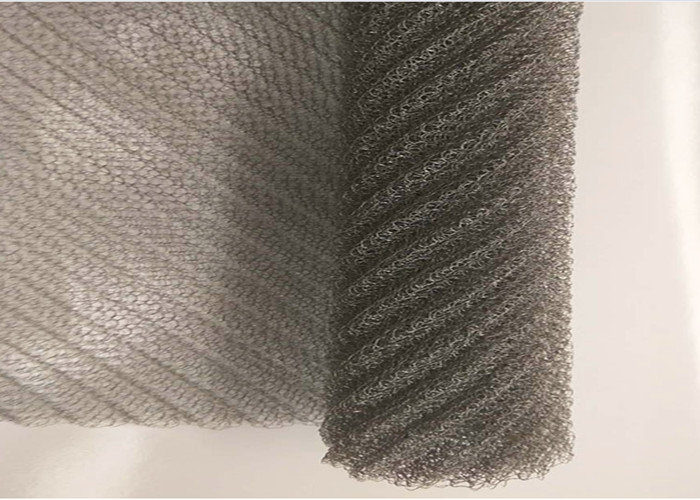

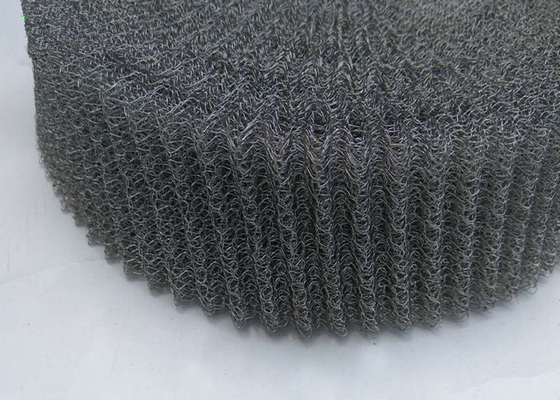

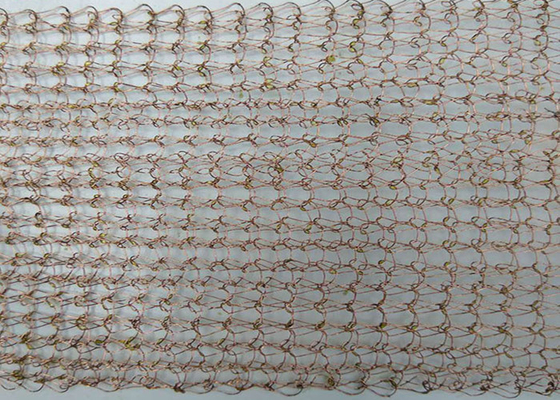

Products Display





316L Knitted Wire Mesh Twin Wire / Dogan Wire 0.18mm Dia 38mm Width For Thermal Insulation 0316L Knitted Wire Mesh Twin Wire / Dogan Wire 0.18mm Dia 38mm Width For Thermal Insulation 1316L Knitted Wire Mesh Twin Wire / Dogan Wire 0.18mm Dia 38mm Width For Thermal Insulation 2
