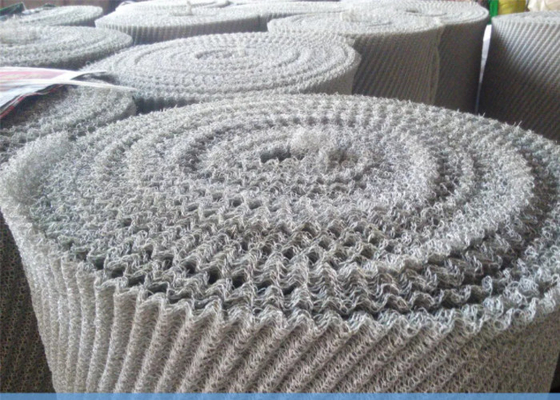

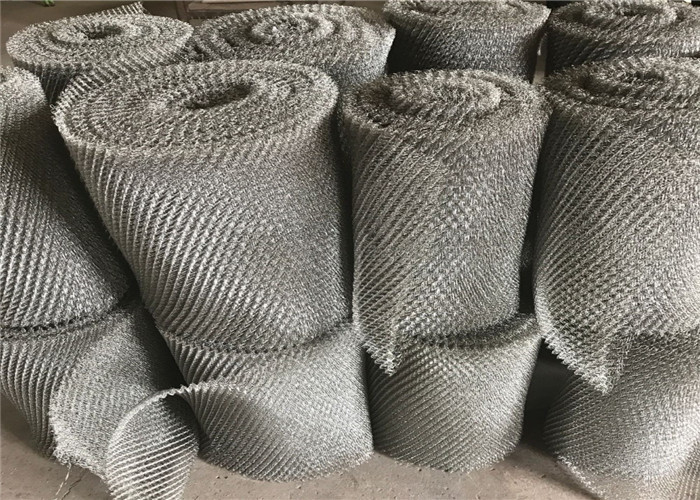

Nickel Knitted Wire Mesh 4*5mm Mesh Hole 500mm Width For Gas Liquid Filter

4*5mm mesh hole Nickel material Knitted wire mesh for gas liquid filter mesh

Knitted Wire Mesh description

Knitted wire mesh is a method for making cloth from mesh wire. For industrial and commercial applications, knitted material utilizes a much broader range of materials and involves a wide range of post-knitting processes.

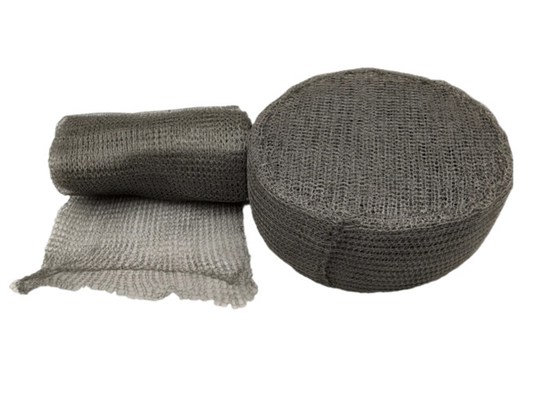

The method used to knitted wire mesh is similar to that of a knitting machine used to make scarves, just on a much larger industrial scale. The form of the final product is generally a long sock, and the structure of the knit, inter-connecting loops of wire/fibres, provides a material with unique properties and application suitability. We can produce a vast array of multi-filament, co-knit, and multi-strand knitted wire meshes. For example, knitted wire mesh with head 12 needles/ 16needles, 0.20 mm/0.23 mm diameter wire, mesh dia. 5 mm/12 mm.

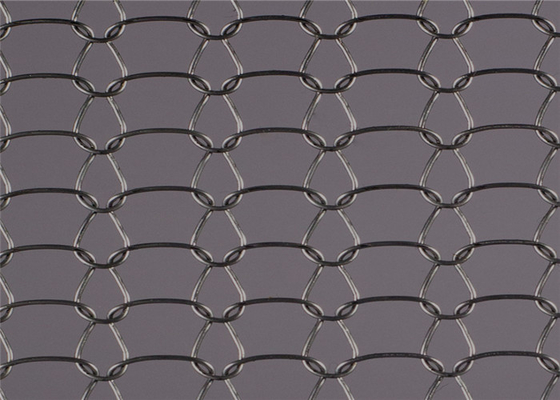

knitted wire mesh detail

Knitted Wire Mesh Main Materials

Nickel knitted wire mesh has good corrosion resistance,High temperature resistance,acid and alkali resistance in all extreme environments and it is tough with high tensile strength, giving good wear characteristics.

Knitted wire mesh made of tinned copper clad steel has the best shielding performance of all wires used in knitted meshes, reasonably conductive,combining low contact resistance with a small degree of permeability. It is not suitable for highly abrasive applications. Tinned copper clad Steel Knitted Wire Mesh also has high corrosion resistance.

Aluminum knitted wire mesh is mechanically weak and will readily take a compression set and this combined with its readiness to form a non-conducting oxide. It is usually round or flat wire, and the Aluminium knitted mesh is for numerous aerospace, military and other fields.
