| Place of Origin: | China |
| Brand Name: | zhaotong |
| Certification: | ISO9001 |
| Model Number: | 600mm |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | to be negotiated |
| Packaging Details: | wooden box |
| Delivery Time: | 5-15work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 2999 pcs per week |
| Product Name: | Monel Demister Pads Of Knitted Fine Monel Wire Mesh Cloth In Mulitple Layer Section Blankets / Mattresses For Sulfuric | Width: | Customized |
|---|---|---|---|
| Hole Shape: | Round,Square | Material: | Metal 316L,Stainless Steel,Monel,copper |
| Feature: | Corrosion Resistance,high Mechanical Damping Characteristics And Non-linear Spring Rates | Type: | Crimped Type |
| Thickness: | Customized | Wire Diameter: | 0.20 Mm-0.25mm,0.08mm-0.30mm,0.25 Or 0.28 Mm,0.1-0.28mm,0.0035''-0.020'' |
| OEM: | OK | Name: | Stainless Steel Filter Wire Mesh,Knitting Wire Incoloy 825 Wire Knit Mesh Demister Pad,demister For Distillation Towers |
| Technique: | Knitting, Weave | Usage: | Kinds Filtration Industry,Chemical Industry,Gas Liquid Separation,Air & Liquid Filtration,Mass Transfer |
| High Light: | Customized Width Mesh Pad Demister,Multiple Layer Mesh Pad Demister,OEM Mesh Pad Demister |
||

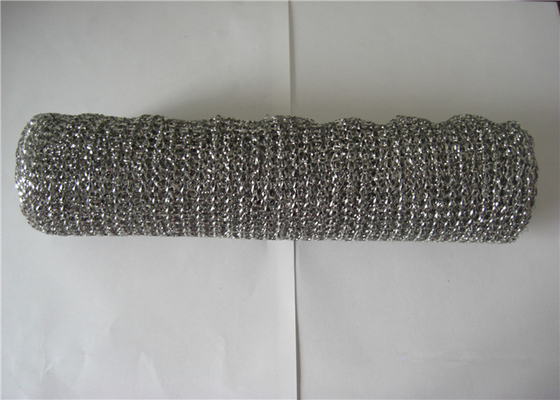

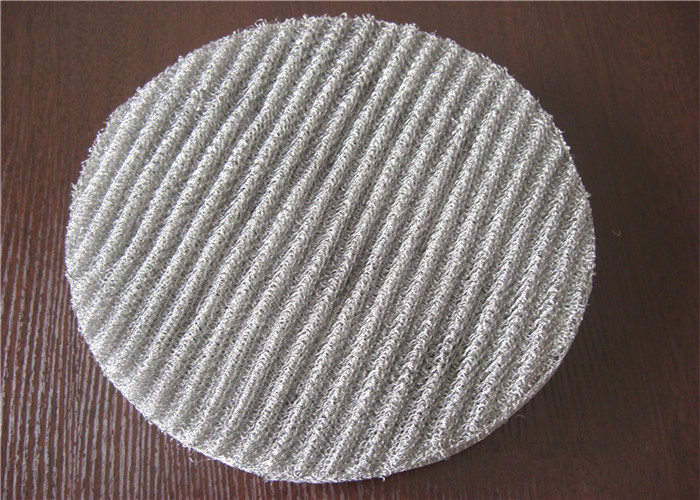

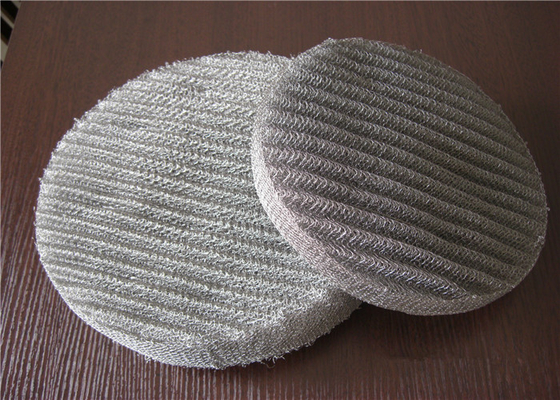

Monel Demister Pads Of Knitted Fine Monel Wire Mesh Cloth In Mulitple Layer Section Blankets / Mattresses For Sulfuric
Demister Knitted Mesh Products introduce
Demister Knitted Mesh (also known as screen mist eliminator, screen foam trap) is used to remove the entrapped fog in the gas (fog)
Droplets), recover expensive fog droplets (precious materials), or purify the gas to reduce impurities in the gas.net
The Demister Knitted Mesh adopts 0.15m ~ 0.25m of corrosion-resistant metal wire, or with special warp and weft and P, P T F E and other engineering plastic wire woven into a screen, pressed into a wave (W type), lap and become.Screen defogging equipment has the characteristics of small pressure drop, large specific surface area and high defogging efficiency.For fog drops above 3 microns, the defogging efficiency can reach more than 98%.
Demister Knitted Mesh characteristic
1.Simple structure, lightweight
2.Easy installation, operation and maintenance
3.99% efficiency under general conditions and velocity (1~3m/sec or higher)
4.Can be made of any material suitable for the given temperature and corrosion-resistance
5.Long service life
6.Fits in all process equipment
Demister Knitted MeshSize
| Product name | Monel Demister Pads Of Knitted Fine Monel Wire Mesh Cloth In Mulitple Layer Section Blankets / Mattresses For Sulfuric |
|
Material type |
Stainless Steel 304L, 316L, Monel, Nickle, etc |
|
Wire diameter |
0.08--0.50mm |
|
Width |
40mm, 80mm, 150mm, 200mm, 300mm, 400, 500mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm, etc. |
