Place of Origin: | China |
Brand Name: | zhaotong |
Certification: | ISO9001 |
Model Number: | Dia 50mm |
Minimum Order Quantity: | 500pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Water-proof paper, wooden cases, As cusomters requirement |
Delivery Time: | 7-10 work days after payment |
Payment Terms: | T/T, L/C,PayPal |
Supply Ability: | 10000 Piece/Pieces per day |
Product Name: | Pipework Metal Cushion Dampers | Material2: | Stainless Steel Metal |
---|---|---|---|
Dia: | 50mm | Usage: | Pipework |
Thickness: | 10mm-100mm | Wire Diameter: | 0.08-0.55MM |
ID: | Customized | Weave Style: | Knitted |
Material 1: | Stainless Steel 304,304L,316,316L Etc | Certificate: | ISO9001:2015 |
Package: | Wooden Case Or Wooden Pallet Or Customized | Material 3: | Copper |
High Light: | 50mm Metal Cushion Dampers,Pipework Metal Cushion Dampers,0.55mm Metal Anti Vibration Mount |
Stainless Steel Dia 50mm Car Metal Anti-Vibration Mount For Pipework Metal Cushion Dampers
Metal Cushion Dampers information
ZHAOTONG METALLIC CUSHION AISI 304,The metallic cushions ZHAOTONG are made from stainless steel wire, knitted, embossed and highly compressed, in order to achieve the wanted geometric shape.
Our metallic cushions range has more than 900 standard references and could provide up to 2000 special choices, each one with their own characteristics (range of loads supported, static stiffness, natural frequency and % damping). However, thanks to our capacity of manufacture metallic cushions, ZHAOTONG can develop and provide particular shapes and characteristics, adjusted to special requests of our customers.
Metal Cushion Dampers APPLICATIONS and CHARACTERISTICS
Metallic cushion ZHAOTONG AISI can be used in a wide rank of industrial applications due to:
Load static range: 200 - 1700 Kg
Support temperatures: from - 67°C to + 1000°C
Natural frequency: 15 - 20 Hz
Damping: 15 - 20%
Provide progressive stiffening: provide a constant natural frequency under a very wide range of loads, using a small space volume
All-metall dampers: metallic cushions ZHAOTONG are manufactured in 100% stainless steel, AISI-304 or even AISI-316 for corrosive ambients (Chemical Industry, aeronautics, etc.)
Are naturally resistant to grease, oil, water, among others
Specially suitable to damp rotating machines
Metal Cushion Dampers Detailed specification
Dia 50mm Car Metal Anti-Vibration Mount For Pipework Metal Cushion Dampers
|
|||
Wire Diameter
|
0.1mm -0.55mm
|
||
Mesh Type
|
2x3mm,4x5mm,12x6mm or other customized
|
||
Washer Size
|
Customized as need
|
||
OEM
|
Yes
|
||
Application
|
Mainly for filter
|
||
Package
|
Wooden Case or Pallet
|

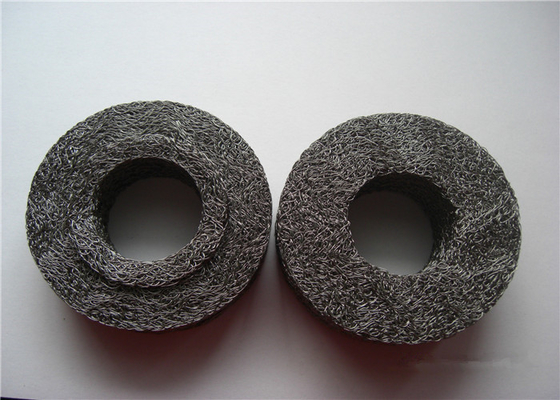

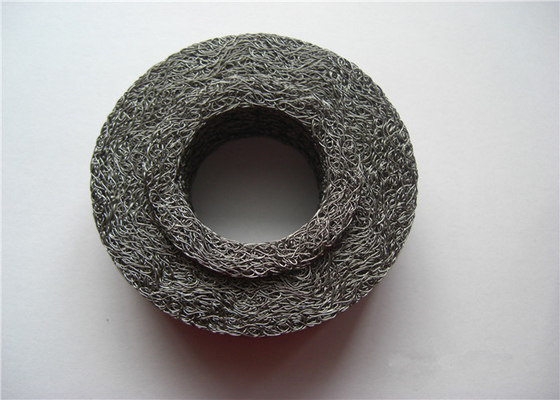

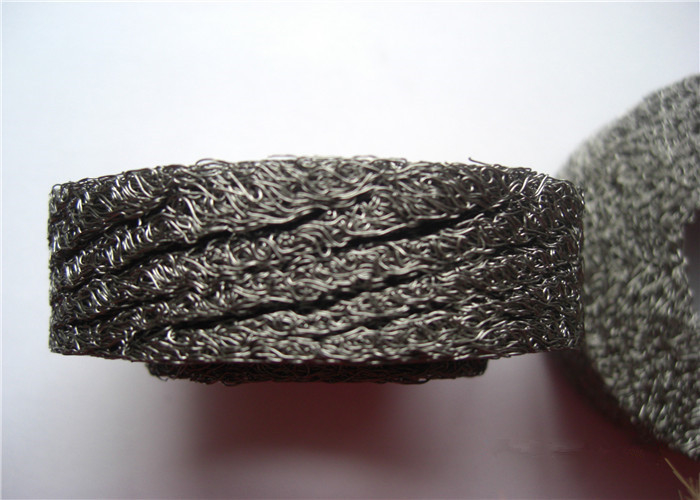

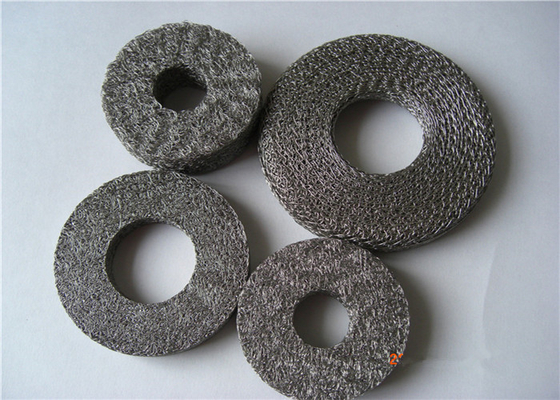

Picture show
Contact Person: Aimee
Tel: +86 13103181658
Fax: 86-0318-7528518
