0.23mm Knitted Wire Mesh Roll Corrosion Resistance For Cable Shielding

China Knitted Wire Mesh Roll|Knit Wire Knitted Wire Mesh Tapes for Cable Shielding

Knitted Wire Mesh Tapes presentation

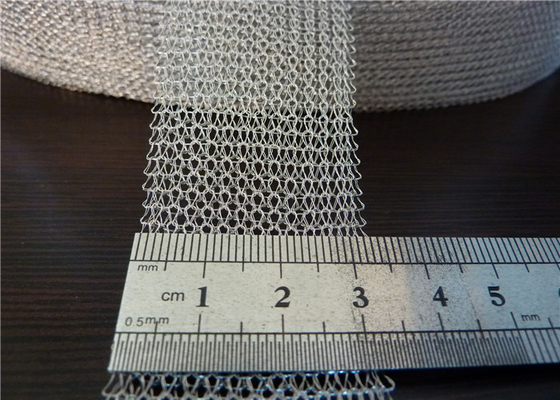

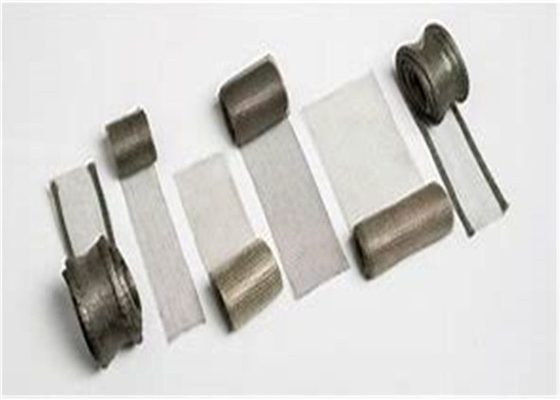

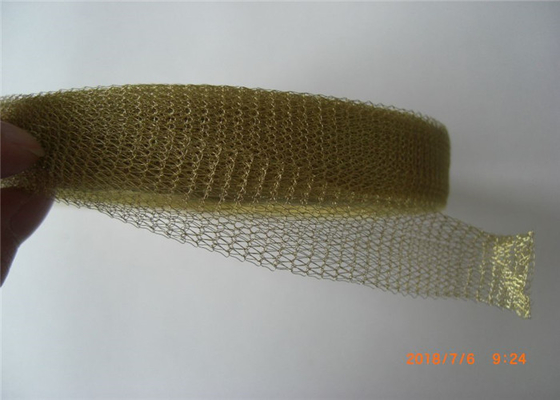

Knitted wire mesh tape, also called cable wrapping, is a kind of knitted wire mesh roll, which the various fine wires are knitted into a double-thickness flat stockings, the knitted wire mesh can be rolled up directly, or it can be rolled onto the paper reels or plastic reels.

Knitted Wire Mesh Tapes Materials and USES

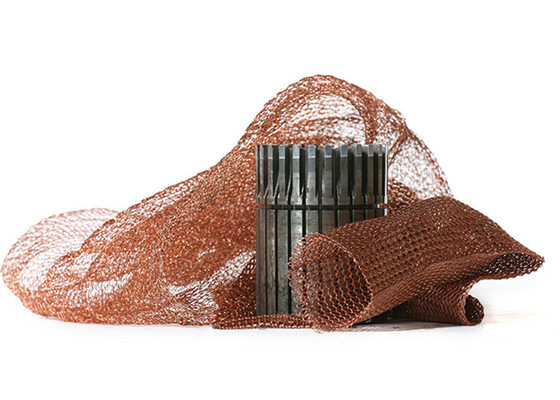

The material of knitted wire mesh tape has a wide range of selection. The main materials of knitted wire mesh tape can be stainless steel, copper, monel, nickel and other alloy wires. All the materials are corrosion resistance and high temperature resistance. They have excellent shielding performance in the applications.

Knitted wire mesh tape is widely used to shield, ground and statically discharge cables or harness entire bundles of cables. Knitted wire mesh tape has excellent shielding performance, which can be used in the various fields.

Knitted Wire Mesh Tapes  Specifications

Material: stainless steel wire, copper wire, nickel wire, monel wire, aluminum wire and other alloy wire.

Wire diameter: 0.11mm, 0.12mm, 0.14mm, 015mm and other sizes can be customized.

Width: 6mm, 13mm, 25mm, 38mm, 50mm, 75mm, 100mm, 175mm, 200mm, 500mm, 1000mm and other widths are available.

Length: commonly is 10m and other lengths can be customized according to your requirements.

Roll type: flatten type and ginning type.

Knitted Wire Mesh Tapes  Features and benefit

Knitted Wire Mesh Tapes Applications

Knitted wire mesh tape is commonly used as knitted wire mesh shielding for EMI/RFI shielding. It can be used in electrical and electronic cables for cable shielding, jointing and grounding. It can supply excellent shielding performance to guarantee the safety.
