| Place of Origin: | China |
| Brand Name: | zhaotong |
| Certification: | ISO9001 |
| Model Number: | zt-Metal Cushion Dampers |
| Minimum Order Quantity: | 99PCS |
|---|---|
| Price: | negotiate |
| Packaging Details: | cartons, pallets, wooden boxes or can be customized |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200000-300000pcs per month |
| Product Name: | Cylindrical Metal Cushion Dampers | Material: | Aisi304 Or Can Be Customized |
|---|---|---|---|
| Diameter: | Dia.2-100mm Or Can Be Customized | Size: | Customer's Requst,as Drawing,According To Customer's Requirement,Customized |
| Type: | OEM Parts,copper,Cylindrical | Technique: | Weave |
| Application: | Cars, Machinery, Chemicals, Filtration, Petroleum | Service: | Customized OEM |
| Density: | 50G , Or Can Be Customized | OEM: | OK |
| High Light: | 100mm Metal Cushion Dampers,50G Metal Cushion Dampers,OEM Cylindrical Metal Cushion |
||
Height Adjustable Aisi 304 Stainless Steel Cylindrical Metal Cushion Dampers

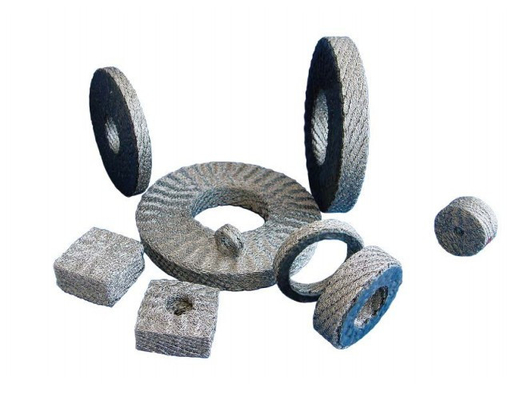

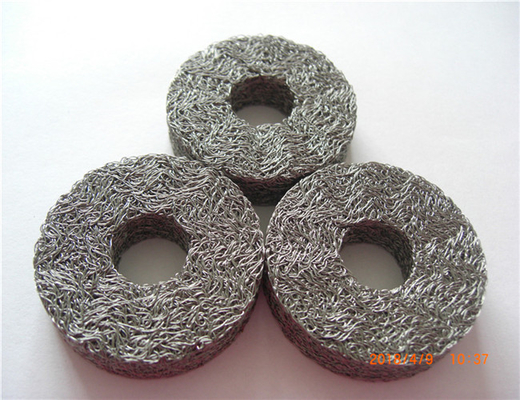

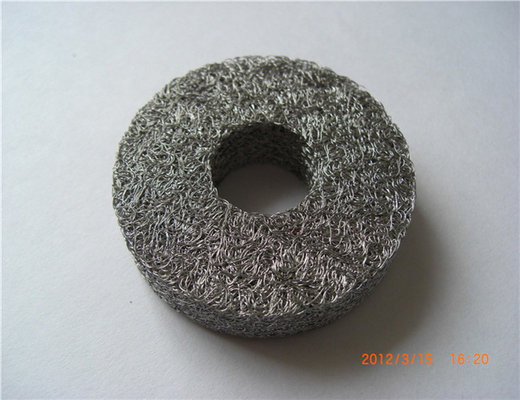

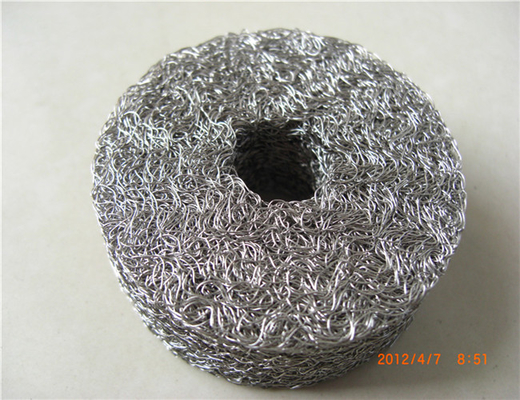

Cylindrical Metal Cushion Dampers Description
The zhaotong metal cushions are made from stainless steel wire, knitted, embossed and highly compressed, in order to achieve the wanted geometric shape.
Our metal cushions range has more than 1000 standard references and could provide up to 2000 special choices, each one with their own characteristics (range of loads supported, static stiffness, natural frequency and % damping).
However, thanks to our capacity of manufacture metallic cushions, zhaotong can develop and provide particular shapes and characteristics, adjusted to special requests of our customers.
Cylindrical Metal Cushion Dampers Characteristics
| Characteristics |
- Load static range: 200 - 2700 Kg (Dynamic: up to 8100 Kg)
- Support temperatures: from - 67 to + 1200 degrees
- Natural frequency: 15 - 20 Hz
- Damping: 15 - 20%
- Provide progressive stiffening: provide a constant natural frequency under a very wide range of loads, using a small space volume
- All-metall dampers: metallic cushions zhaotong are manufactured in 100% stainless steel, AISI-304 or even AISI-316 for corrosive ambients (Chemical Industry, aeronautics, etc.)
- Are naturally resistant to grease, oil, water, among others
- Specially suitable to damp rotating machines (over 2000 rpm)
|
